Refurbished Products — T7 7inch 3000nits HDR HDMI 4K On-camera Monitor Kit

Description

* This refurbished product is the old version T7 which does not have a fan.

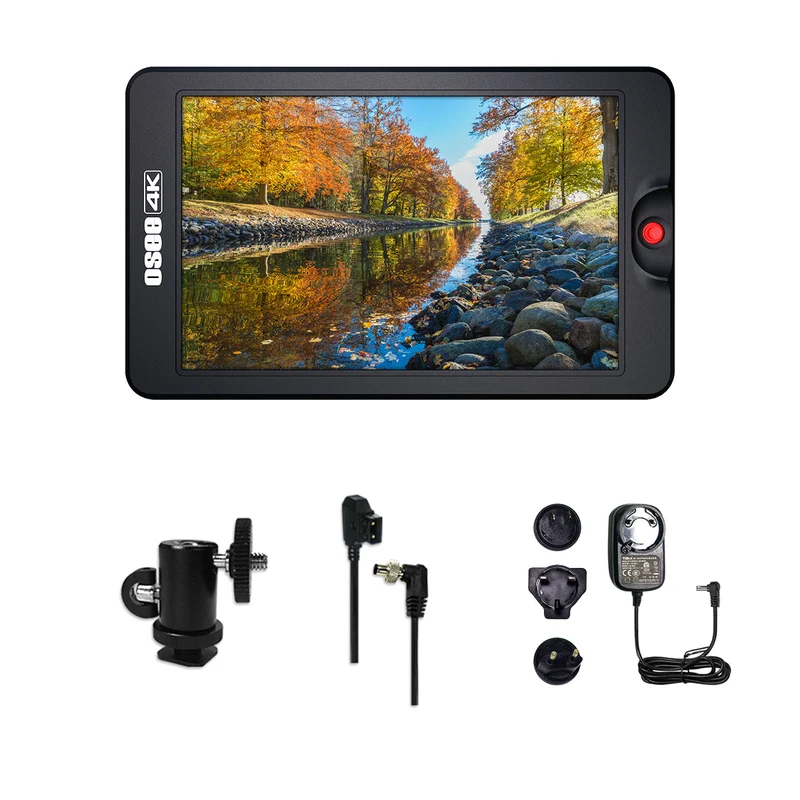

What's in the Box

The Standard Package Includes:

T7 Monitor

Cold Shoe/ 1/4" Bolt Ball Head

D-tap to Lockable Pole DC Cable

AC-DC Power Adaptor

Tech Specs

Hardware
Monitor Body
Weight(Bare Monitor)	438g
Dimensions(W x H X D)	192.0mm×116.3mm×24.7mm
Mounting Points	1/4’’ Thread Points (1*Top&1*Bottom)
Display
Panel Size	7inch
Resolution	1920X1200
Aspect Ratio	16:10
Color Depth	1.06G
Brightness	3000nits
Contrast	1200:1
Anamorphic De-squeeze	1x, 1.33x, 1.5x, 1.66x, 1.8x, 2x, 2xMAG
DSLR Scale	Canon 5D Mark 2, Canon 7D
Zoom	2x, 4x Zoom and Pan
Screen Rotate	Auto/0°/180°
Power
Input Voltage	DC IN 11-17V, Battery 6-8.4V
Battery Plate	SONY NP-F
Power Consumption	16.2W
Data I/O
SD Card Slot	3D LUTs upload and Firmware Upgrade (SD card under 16G and formatted to FAT32 is recommended)
Input/Output Signal	HDMI In: 1 x HDMI(1.4) Signal Format: 3840x2160p(30/29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 720p(60/59.94/50) 480i/576i/480p/576p
Audio	Speaker&3.5mm Headphone Jack
Software
Control
Volume	Level 0-31 Adjustable
Backlight	Level 0-10 Adjustable
Display Rotate	Screen Rotate Auto/0/180& Image Rotate 0/180
Anamorphic	1*/1.33*/1.5*/1.66*/2*/2*MAG
DSLR Scale	None/CANON 5D MARK II/CANON 7D
Frame Tools
Aspect	4:3/1.85:1/2.39:1/16:9/Custom Ratio, Matte/Line Mode
Safe	16:9 / 14:9 / 4:3, Action&Title Selectable
Center	On/Off
CrossHatch	2x2, 3x3 ... 9x9
Exposure Tools
False Color	17 Curves
Zebra	Level 1-100 Adjustable
Waveform	LUMA/RGB/Parade Mode, Size&Location&Opacity Adjustable
Vector Scope	Location&Opacity Adjustable
Focus Tools
Focus Assist	White/Red/Green/Blue Mode, B&W Background, Sensitivity Level 1-10 Adjustable
Peaking	Intensity Level 0-10 Adjustable
Look Tools
Look	Built-in 33 De-log 3D LUTs/Support 16 User 3DLUTs Import by SD Card
Audio Meter	Location&Opacity Adjustable
Scale Tool
Image Scale	Location Adjustable
