G7 7" HDR On-Camera Field Monitor Kit | 1000nits Brightness, Waveform & Peaking, 3D LUT Support | HDMI I/O with Sunhood & Mounting Solutions

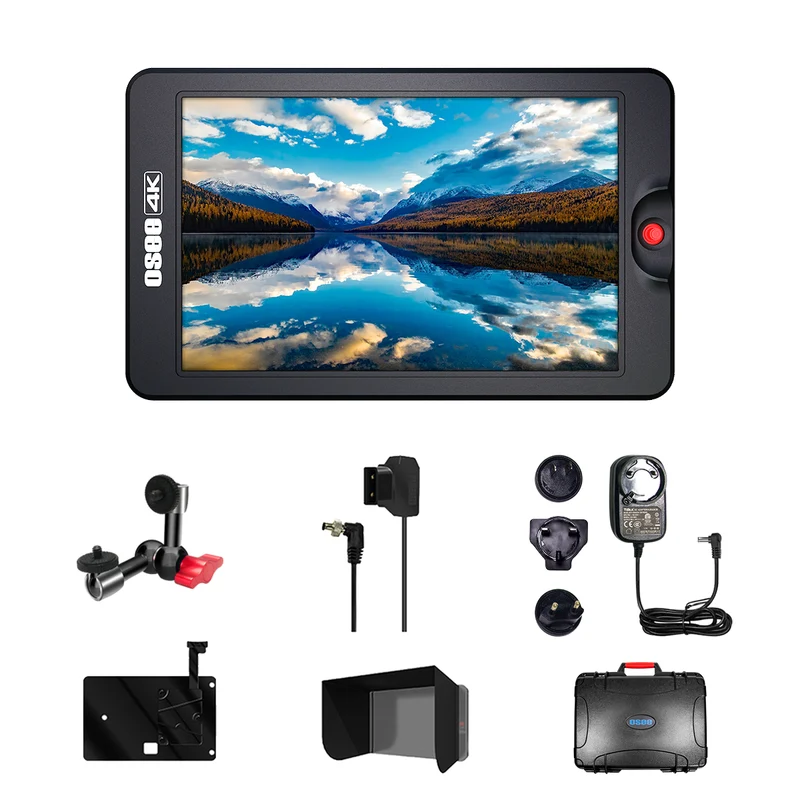

Description Video What's in the Box The Standard Package Includes: G7 Monitor Screw Articulating Arm Trestle D-tap to Lockable Pole DC Cable AC-DC Power Adaptor V mount Battery Plate Sunhood Carrying Case
Tech Specs

Hardware
Monitor Body
Weight&Dimension	Package (Box): 38.5*14*33 cm; Gross Weight: 3 KG
Mounting Points	1/4’’ Thread Points (1*Top&1*Bottom)
Fan	Fan speed adjustable
Display
Panel Size	7inch
Resolution	1920X1200
Aspect Ratio	16:10
Color Depth	1.06G
Brightness	3000nits
Contrast	1200:1
Anamorphic De-squeeze	1x, 1.33x, 1.5x, 1.66x, 1.8x, 2x, 2xMAG
DSLR Scale	Canon 5D Mark 2, Canon 7D
Zoom	2x, 4x Zoom and Pan
Screen Rotate	Auto/0°/180°
Power
Input Voltage	DC IN 11-17V, Battery 6-8.4V
Battery Plate	SONY NP-F
Power Consumption	16.2W
Data I/O
SD Card Slot	3D LUTs upload and Firmware Upgrade (SD card under 16G and formatted to FAT32 is recommended)
Input/Output Signal	HDMI(1.4) 3840x2160p(30/29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 720p(60/59.94/50) 480i/576i/480p/576p SDI 2KP60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080i60/59.94/50 1080SF30/29.97/25/24/23.98 1035I60/59.94
Audio	3.5mm Headphone Jack
Software
Control
Volume	Level 0-31 Adjustable
Backlight	Level 0-10 Adjustable
Display Rotate	Screen Rotate Auto/0/180& Image Rotate 0/180
Anamorphic	1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off
DSLR Scale	None/CANON 5D MARK II/CANON 7D
Frame Tools
Aspect	4:3/1.85:1/2.39:1/16:9/Custom Ratio, Matte/Line Mode
Safe	16:9 / 14:9 / 4:3, Action&Title Selectable
Center	On/Off
CrossHatch	2x2, 3x3 ... 9x9
Exposure Tools
False Color	17 Curves
Zebra	Level 1-100 Adjustable
Waveform	LUMA/RGB/Parade Mode, Size&Location&Opacity Adjustable
Vector Scope	Location&Opacity Adjustable
Focus Tools
Focus Assist	White/Red/Green/Blue Mode, B&W Background, Sensitivity Level 1-10 Adjustable
Peaking	Intensity Level 0-10 Adjustable
Look Tools
Look	Built-in 33 De-log 3D LUTs/Support 16 User 3DLUTs Import by SD Card
Audio Meter	Location&Opacity Adjustable
Scale Tool
Image Scale	Location Adjustable
